Understanding the Anatomy of a Piano: How It Works
Pianos are remarkable instruments, combining intricate mechanics and artistry to produce beautiful music. Whether you're a musician, a budding pianist, or just someone who appreciates the complexity of the piano, understanding how it works can deepen your appreciation for this timeless instrument.
In this post, we'll break down the anatomy of a piano—explaining its key components and how they work together to create sound. From the keys to the strings, pedals to hammers, every part of the piano plays a vital role in its operation.

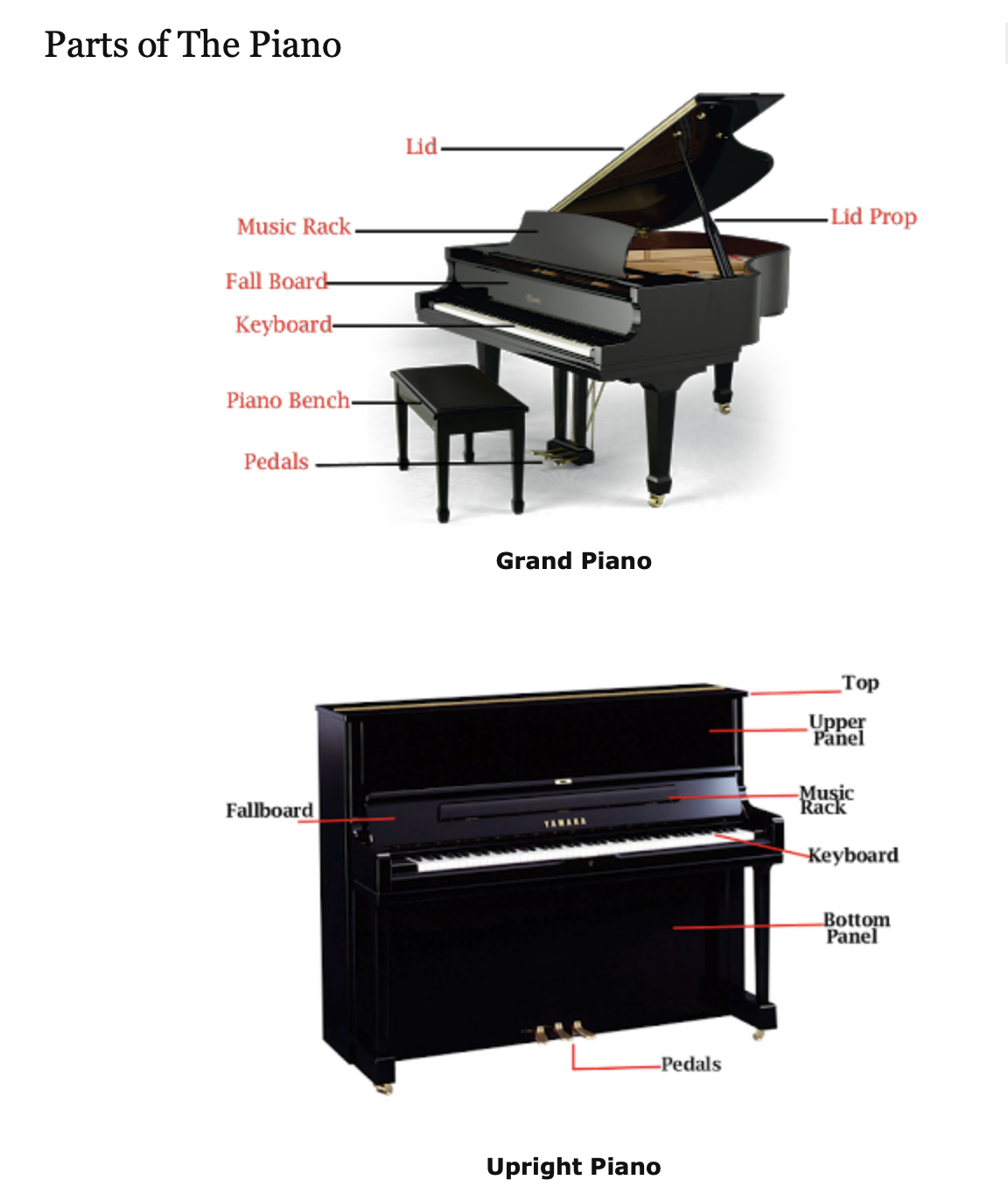

The Exterior: Cabinet, Keys, and Pedals
The Cabinet (The Piano’s Body)
The piano’s outer structure, or cabinet, holds all of the internal components together and serves both a functional and aesthetic purpose. The cabinet can be made from a variety of materials, including wood, metal, or a combination of both. The design of the cabinet influences the overall tone of the piano by affecting sound resonance. For example, a larger cabinet in a grand piano allows for more space for the soundboard, resulting in a richer sound.
Grand Piano: The cabinet is long and horizontal, allowing for maximum resonance and tonal richness.
Upright Piano: The cabinet is vertical, making it more compact and suitable for smaller spaces.
The Keys
The most visible part of the piano is the keyboard, which consists of 88 keys: 52 white keys and 36 black keys. The keys are arranged in a repeating pattern of seven white keys (A to G) and five black keys (sharps and flats) across seven octaves. When a key is pressed, it triggers a sequence of mechanical actions that produce sound.
The white keys are made from a material that looks like ivory or plastic, while the black keys are typically made from plastic. The keys themselves are connected to a complex system of levers, known as the action mechanism, which is responsible for the piano’s responsiveness and feel.

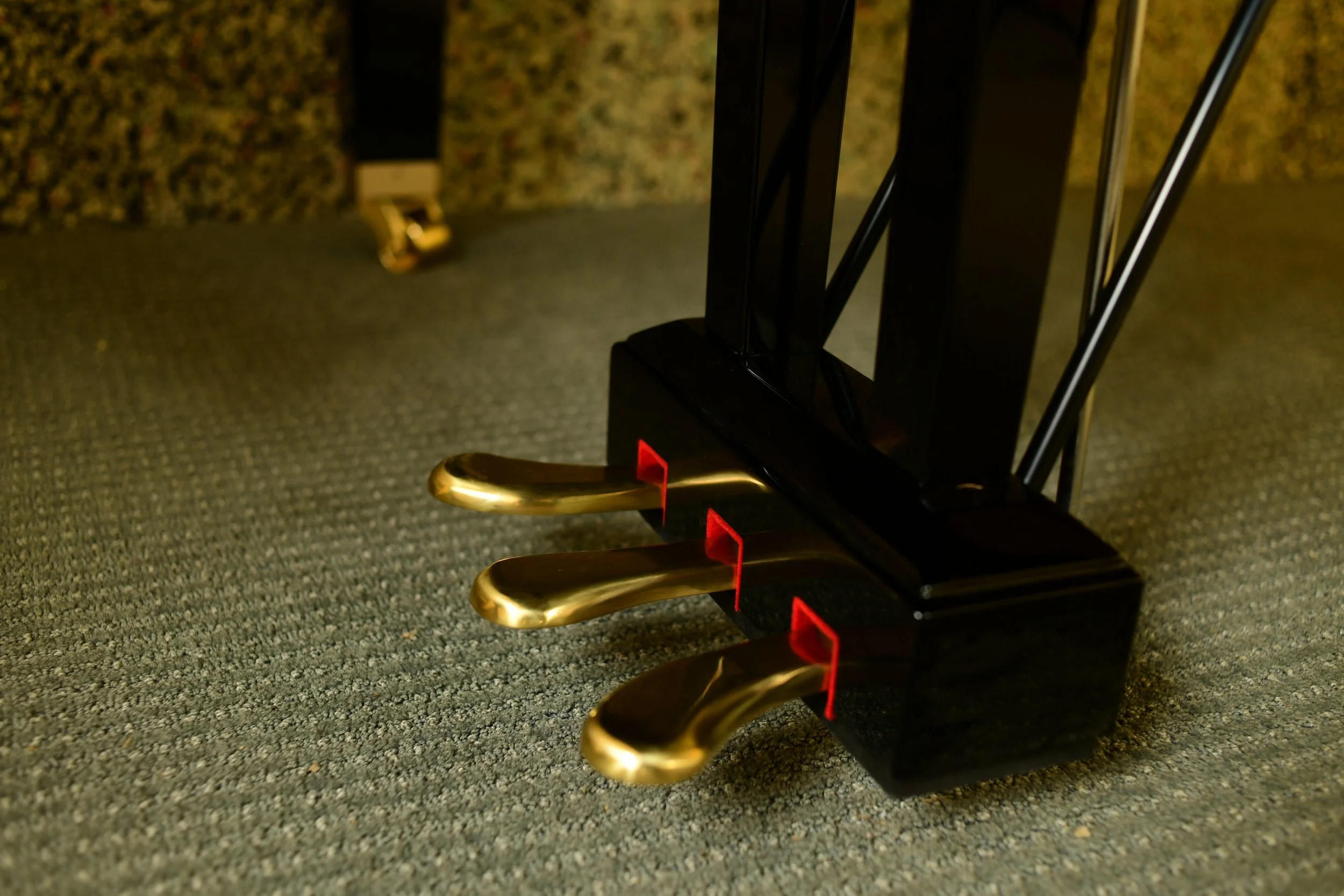

The Pedals

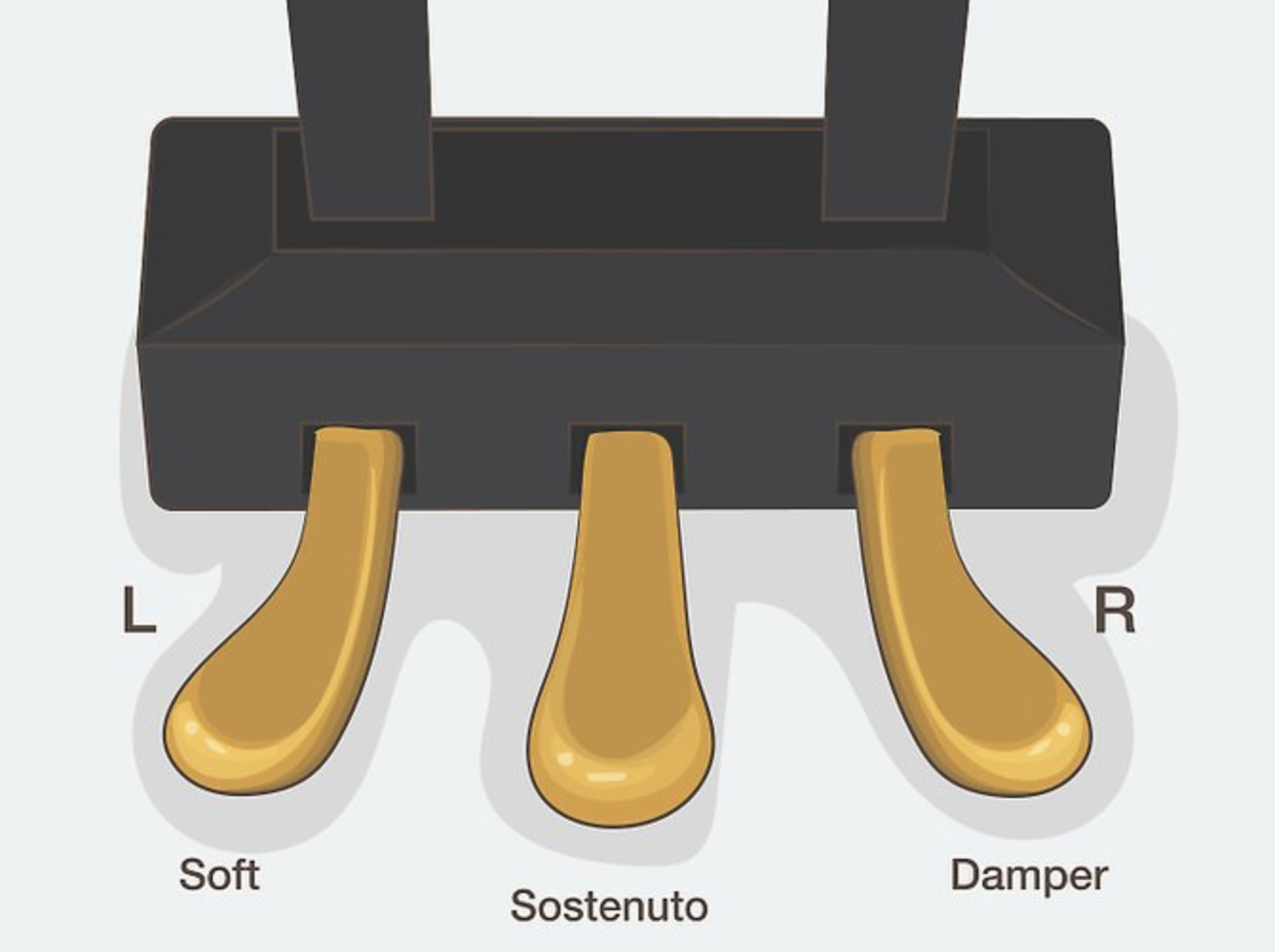

The piano typically has three pedals, each controlling a specific aspect of the instrument’s sound.
Damper/Sustain Pedal (Right Pedal): This pedal lifts all the dampers from the strings, allowing them to vibrate freely and sustain the sound even after you release the keys. It’s the most commonly used pedal.
Soft Pedal (Left Pedal): Also called the "una corda" pedal, this pedal shifts the action slightly to the side, causing the hammers to strike fewer strings (in grand pianos) or move closer to the strings (in uprights). This creates a softer, more muted sound.
Sostenuto Pedal (Middle Pedal): This pedal is found on some grand pianos and allows you to sustain only the notes you’ve played while keeping the rest of the keyboard unaffected.
The Internal Mechanics: The Action, Hammers, and Strings
The Action Mechanism
The action is the complex system of levers, springs, and buttons inside the piano that connects the keys to the hammers. When you press a key, it triggers a series of actions that result in the hammer striking the strings.
The action mechanism consists of several key parts:
Jack: A small lever that pushes the hammer upward.
Hammer: A felt-covered mallet that strikes the strings when the key is pressed.
Shank: The part that connects the jack to the hammer.
Backcheck: A component that catches the hammer after it strikes the string, allowing the hammer to return to its resting position.
In grand pianos, the action is more complex due to the horizontal positioning of the strings and the overall size of the instrument. Upright pianos have a more compact action mechanism, as the strings are positioned vertically.
The Strings

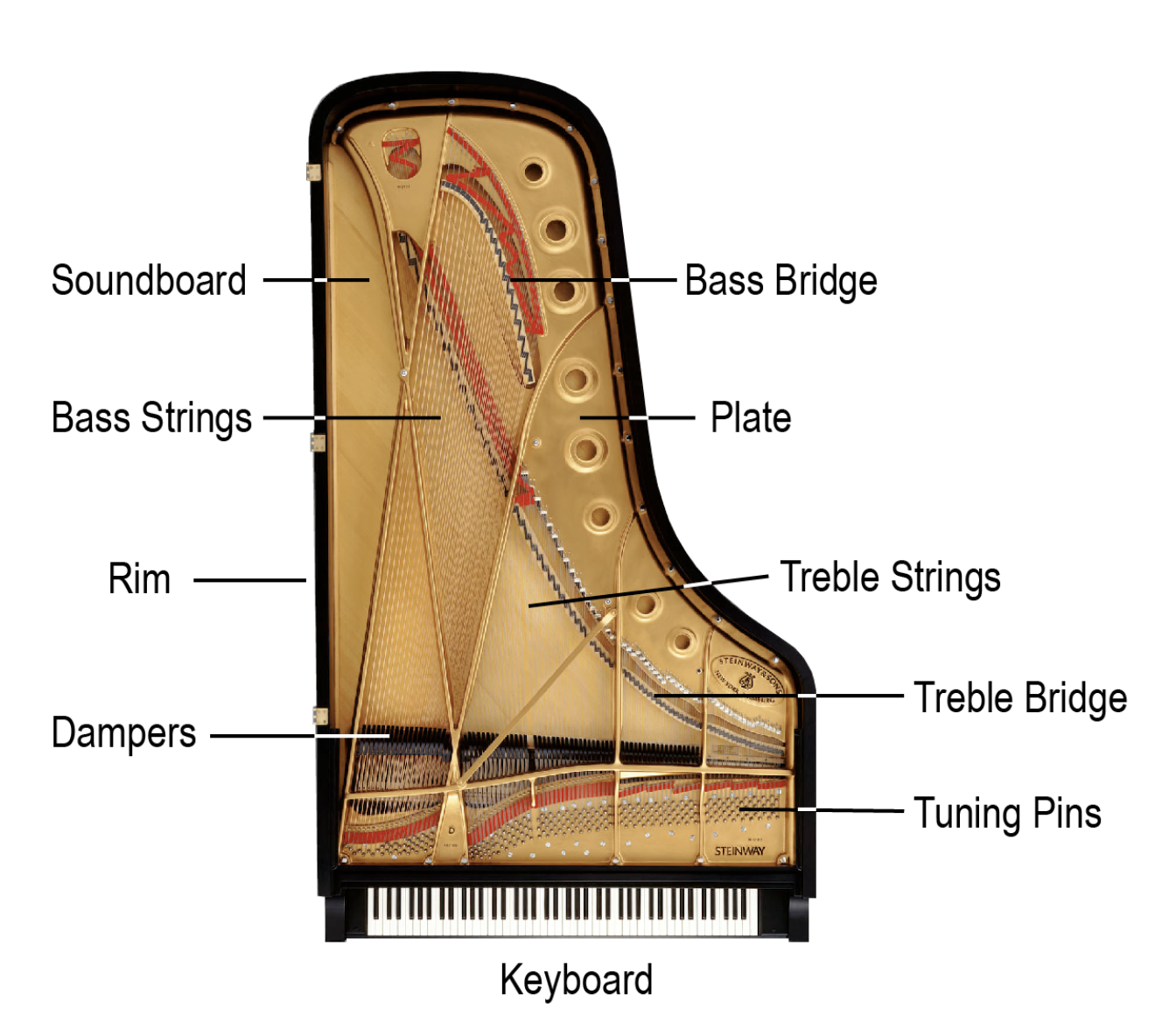

The strings are the heart of the piano’s sound production. When the hammers strike the strings, they vibrate and create sound waves. The vibration of the strings is transferred to the soundboard (the large wooden plate beneath the strings), which amplifies the sound. The piano has hundreds of strings, typically ranging from 220 to 240 in total, depending on the size and type of the piano.
Bass Strings: The lowest notes are created by thick, long strings made of copper-wound wire.
Treble Strings: The higher notes are made by thinner, steel-wound strings.
Midrange Strings: In the middle range, the strings transition between steel and copper winding.
The strings are stretched across a metal frame and are tuned to specific pitches, with the pitch determined by the string's length, thickness, and tension.
The Soundboard
The soundboard is a large wooden panel beneath the strings that amplifies the vibrations produced by the strings. Made of high-quality spruce, the soundboard helps project the sound out of the piano and into the room. It’s one of the most important components in determining the piano's tonal quality. The size, shape, and material of the soundboard all contribute to the richness and clarity of the sound.

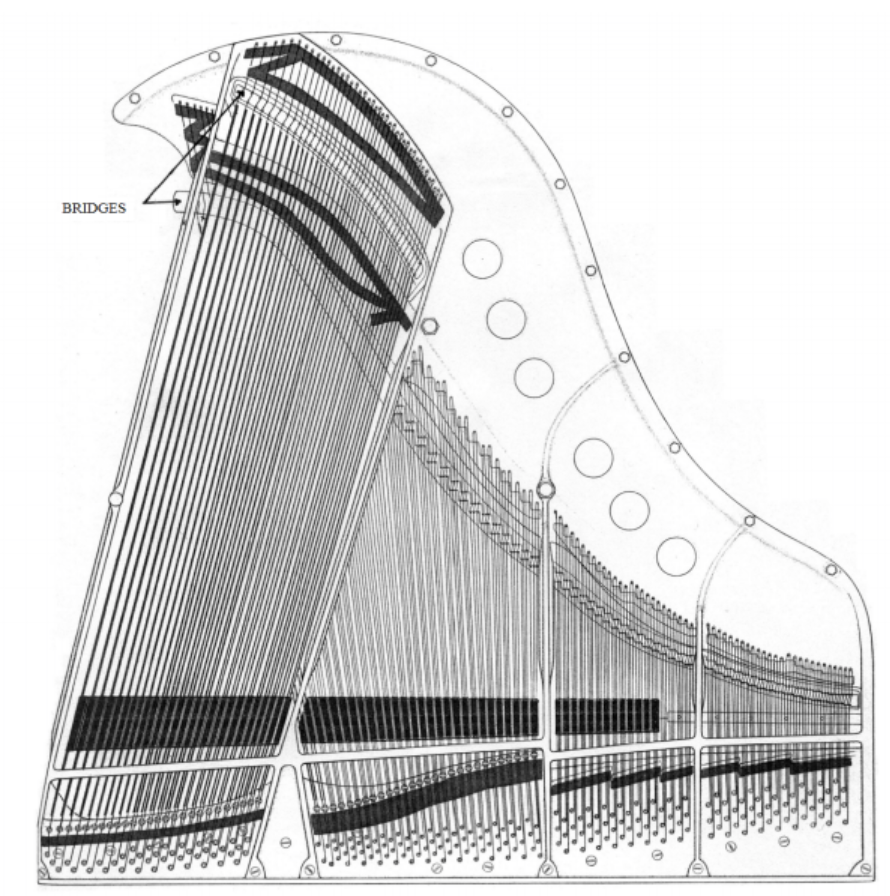

The Bridge
The bridge is a wooden component that connects the strings to the soundboard. It helps transfer the vibrations from the strings to the soundboard, which is essential for producing sound. The bridge is carefully positioned to ensure that the energy from the strings is efficiently transferred to the soundboard.
The Tuning Pin and Pinblock
The tuning pins are the metal pegs that hold the strings in place and allow them to be tuned to the correct pitch. Each string is wound around a tuning pin, which is located in the pinblock. The pinblock is a thick, dense piece of wood that keeps the tuning pins stable and secure under the enormous tension of the strings.
Tuning a piano involves adjusting the tension of the strings by turning these tuning pins with a special tool called a tuning wrench. Over time, as the strings stretch and settle, they will need to be retuned.
The Damper Mechanism
The damper mechanism is responsible for stopping the strings from vibrating once a key is released. When you play a note and release the key, a damper (a felt-covered block) falls onto the string, preventing it from vibrating. The damper is lifted off the string when the key is pressed, allowing the string to vibrate freely.
In some pianos, the dampers are lifted by the sustain pedal when pressed, allowing all strings to resonate and create a sustained sound. In other pianos, the dampers are controlled individually by each key’s action mechanism.
The Piano Frame and Casing
The piano frame, often made of cast iron, is the structure that holds all the internal components of the piano in place. The frame must be incredibly strong to withstand the immense tension of the strings. This tension can be up to 20 tons in total, depending on the size of the piano.
The casing surrounds the frame and the action mechanism, providing both protection for the internal components and a finished aesthetic look. The casing is typically made of high-quality wood, such as maple, oak, or mahogany, and can vary in style from the sleek, modern look of a digital piano to the elegant, traditional finish of an acoustic grand piano.
The Role of the Pedal System in Sound Control
As mentioned earlier, the three main pedals (sustain, soft, and sostenuto) control how the sound is produced and sustained. The pedals allow the player to manipulate the resonance, volume, and tone of the piano. The sustain pedal is used most frequently, allowing for legato playing by sustaining notes after the keys are released.
The soft pedal, or una corda, allows for softer, more muted sounds by shifting the action and changing the way the hammers strike the strings. The sostenuto pedal (available on some grand pianos) lets the player hold certain notes while allowing others to be played normally, enabling more nuanced and complex musical expressions.
Conclusion: The Piano as a Work of Engineering and Art
A piano is a true masterpiece of engineering, combining complex mechanical systems with the expressive power of music. From the action mechanism that connects the keys to the hammers, to the strings and soundboard that produce the sound, every part plays a crucial role in the piano’s performance. Understanding these components and how they interact gives you a deeper appreciation for the piano, whether you’re playing it, maintaining it, or simply enjoying its music.
Each time you sit down at a piano and press the keys, you're interacting with hundreds of finely tuned and intricately designed parts working in harmony. Now that you understand the anatomy of the piano, you can truly appreciate the engineering behind each note played.
